Dot Portable Propane Cylinders
10# 20# and 33.5 aluminum Marine Cylinders

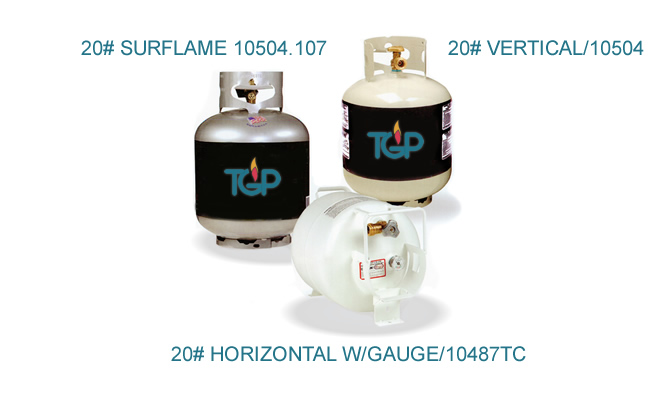

20# Gas Grill & RV Cylinders
30# & 40# Cylinders
50#, 60# & 100# DOT Cylinders
 |
100# Mini ASME, 200# & 420# Portables
 |
Steel Forklift Cylinders
|
|
Aluminum Forklift Cylinders
 |
Vertical Dispenser W/Base & Crash Posts
 |
Vertical Dispenser Packages
 |
Propane Hand Burners
 |
Cylinder Valves / General
| INLET CONNECTION | INTERNAL OUTLET CONNECTION | EXTERNAL OUTLET CONNECTION | FIXED LIQUID LEVEL | TYPE NUMBER |
| 3/4" NPT | F.POL | 1-5/16" | NO | 3349375 |
| 3/4" NPT | F.POL | 1-5/16" | YES | 3349LG40 |
| INLET CONNECTION | OUTLET CONNECTION | FIXED LIQUID LEVEL | START TO DISCHARGE SETTING | TYPE NUMBER |
| 3/4" NPT | F.POL | NO | 375 | 3250AD7 |
| INLET CONNECTION | OUTLET CONNECTION | REF. NO. | TYPE NUMBER BRASS | |
| 3/8" FNPT | 1-1/4" M. ACME | 9 | ME220M | |
| POL CONNECTION | OTHER CONNECTION | LENGTH | REF NO. | TYPE NUMBER BRASS |
| STRAIGHT MALE POL | 1/4" MNPT | 2-9/16" | 2 | ME388# |
| ANGLE MALE POL | 1/4" MNPT | 3" | 3 | ME348 |
High Pressure Hose
| MAX.WP | SIZE.ID | SIZE O.D. | PART NUMBER |
| 350 | 1/4" | 5/8" | 740 |
| 350 | 3/8" | 25/32" | 742 |
| 350 | 1/2" | 31/32" | 743 |
| 350 | 3/4" | 1-1/4" | 744 |
| 350 | 1" | 1-1/2" | 745 |
| 350 | 1-1/4" | 1-27/32" | 746 |
| 350 | 1-1/2" | 2-1/8" | 750D |
| 350 | 2" | 2-9/16" | 751 |
Quick activating valves
| CYLINDER SIZE | CYLINDER I.D. | RED DIP TUBE LENGTH | TYPE NUMBER |
| 10# | 12.0 | 3.6 | OPD10 |
| 20# | 12.0 | 4.0 | OPD20 |
| 30# | 12.0 | 4.8 | OPD30 |
| 40# | 12.0 | 6.5 | OPD40 |
Patio Heater
DESCRIPTION PART # 40,000 BTU/HR PORTABLE PATIO HEATER PH40
Heaters
| DESCRIPTION | REF N. O. | PART # |
| 11,000 BTU/HR HEATER | 1 | 12IR |
| 22,000 BTU/HR HEATER | 2 | 24IRP |
| 33,000 BTU/HR HEATER | 3 | 36IR |
| 44,000 BTU/HR HEATER | 4 | 48IR |
Enerco Gas fired Overhead Infra-Red Heaters
| MODEL | GAS | BTU/HR | PART # |
| SERIES 9000 | NATURAL | 120,000 | 9120NDSP5 |
| SERIES 9000 | NATURAL | 120,000 | 9100SNPP |
| SERIES 9000 | PROPANE | 120,000 | 9100SLA5 |
| SERIES 9000 | PROPANE | 120,000 | 9100SLPP |
FISHER - REGULATORS and ACCESSORIES 01
| Type 912 - Designed for use on small portable outdoor appliances with capacity ratings of less than 100,000 BTU/Hr. Underwriters Laboratory requires horizontally mounted regulators to be installed with vent opening protection to prevent blockage by freezing rain. Vent protector Type P331 can be used on a horizontally mounted Type 912. | ||||||
| CAPACITY BTU/HR | INLET CONNECTION | OUTLET CONNECTION | OUTLET SETTING | TYPE NUMBER | LIST PRICES | |
 |
320,000 | 1/4” FNPT | 3/8” FNPT | 11" wc | 912101 | $45.00 |
| 1/4” FNPT | 1/4” FNPT | 11" wc | 912104 | $45.00 | ||
| MPOL | 3/8” FNPT | 11" wc | 912122 | $48.00 | ||
FISHER - REGULATORS and ACCESSORIES 02
| PIGTAIL CONNECTIONS | TUBING SIZE | TUBING LENGTH | TYPE NUMBER | LIST PRICES | ||
 |
Economy Male POL | Economy Male POL | 1/4" | 12" | K845A | $15.00 |
| 18" | K840A | $15.00 | ||||
| 30" | K841A | $15.00 | ||||
| 36" | K846A | $15.00 | ||||
| 3/8" | 6" | K865A | $15.00 | |||
| 12" | K862A | $15.00 | ||||
| 18" | K860A | $15.00 | ||||
| 30" | K861A | $15.00 | ||||
| 1/4" Inverted Flare | 1/4" | 18" | K880A | $15.00 | ||
| 1/4" MNPT | 1/4" | 6" | K807A | $15.00 | ||
| 18" | K805A | $15.00 | ||||
| 3/8" | 12" | K460A | $15.00 | |||
| 30" | K462A | $15.00 | ||||
| 36" | K463A | $15.00 | ||||
| 1/2" MNPT | 3/8" | 12" | K832A | $15.00 | ||
| Standard Male POL | Standard Male POL | 1/4" | 20" | K160A | $15.00 | |
| 30" | K161A | $15.00 | ||||
| 36" | K162A | $15.00 | ||||
| 48" | K166A | $15.00 | ||||
| 3/8" | 20" | K200A | $15.00 | |||
| 30" | K201A | $15.00 | ||||
| 1/4" Inverted Flare | 1/4" | 20" | K240A | $15.00 | ||
| 30" | K241A | $15.00 | ||||
| 36" | K249A | $15.00 | ||||
| 1/4" MNPT | 1/4" | 20" | K280A | $15.00 | ||
| 30" | K281A | $15.00 | ||||
| 36" | K282A | $15.00 | ||||
| 48" | K286A | $15.00 | ||||
| 1/2" MNPT | 3/8" | 12" | K520A | $15.00 | ||
| Heavy Duty Male POL | Heavy Duty Male POL | 1/4" | 20" | K100A | $15.00 | |
| 36" | K103A | $15.00 | ||||
| 48" | K104A | $15.00 | ||||
| 1/4" Inverted Flare | 1/4" | 20" | K220A | $15.00 | ||
| 36" | K230A | $15.00 |
